How to show a popup Alert in Android with a RecyclerView in Kotlin

YouTube video:

I published a video on YouTube. You can watch it here:

Please do subscribe to my channel if you love this video.

Project Setup:

We will use one Node.js backend for this example project. You can download the project from this GitHub link. You need to run npm install && npm run start or yarn && yarn start to start the server on the 3000 port.

localhost:3000 will return the response array used in this example.

Changes in the ApiService class:

For this example, we will use a vertical RecyclerView. Change the ApiService.kt file to fetch the data without horizontal RecyclerView data:

import com.example.myapplication.models.Property
import com.squareup.moshi.Moshi
import com.squareup.moshi.kotlin.reflect.KotlinJsonAdapterFactory
import retrofit2.Call
import retrofit2.Retrofit
import retrofit2.converter.moshi.MoshiConverterFactory
import retrofit2.http.GET

private const val BASE_URL = "http://10.0.2.2:3000"

private val moshi = Moshi.Builder().add(KotlinJsonAdapterFactory()).build()
private val retrofit = Retrofit.Builder().addConverterFactory(MoshiConverterFactory.create(moshi)).baseUrl(BASE_URL).build()

interface ApiService{

+   @GET(".")
    fun getAllData(): Call<List<Property>>

}

object Api {
    val retrofitService: ApiService by lazy{retrofit.create(ApiService::class.java)}
}

Changes in the adapter:

On clicking the delete button, the adapter class will call a method in the MainActivity class. The alert will be shown in the MainActivity class file.

We need to update the MyAdapter.kt file as below:

import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import android.widget.Button
import android.widget.ImageView
import android.widget.TextView
import androidx.constraintlayout.widget.ConstraintLayout
import androidx.recyclerview.widget.LinearLayoutManager
import androidx.recyclerview.widget.RecyclerView
import com.bumptech.glide.Glide
import com.example.myapplication.models.Property
import org.w3c.dom.Text

+ class MyAdapter(private val data: List<Property>, val onClickDelete: (Int) -> Unit) : RecyclerView.Adapter<MyAdapter.MyViewHolder>()  {

    private var listData: MutableList<Property> = data as MutableList<Property>
    inner class MyViewHolder(val view: View): RecyclerView.ViewHolder(view){

        fun bind(property: Property, index: Int){
            val title = view.findViewById<TextView>(R.id.tvTitle)
            val imageView = view.findViewById<ImageView>(R.id.imageView)
            val description = view.findViewById<TextView>(R.id.tvDescription)
            val button = view.findViewById<Button>(R.id.button)
            val constraintLayout = view.findViewById<ConstraintLayout>(R.id.constraintLayout)
            val recyclerView = view.findViewById<RecyclerView>(R.id.recyclerView)

            constraintLayout.visibility = View.VISIBLE
            recyclerView.visibility = View.GONE


            title.text = property.title
            description.text = property.description

            Glide.with(view.context).load(property.image).centerCrop().into(imageView)

            button.setOnClickListener{deleteItem(index)}

        }

        fun bindRecyclerView(data: List<Property>){
            val recyclerView = view.findViewById<RecyclerView>(R.id.recyclerView)
            val constraintLayout = view.findViewById<ConstraintLayout>(R.id.constraintLayout)

            constraintLayout.visibility = View.GONE
            recyclerView.visibility = View.VISIBLE

            val manager : RecyclerView.LayoutManager = LinearLayoutManager(view.context, LinearLayoutManager.HORIZONTAL, true)
            recyclerView.apply{
                val data = data as MutableList<Property>
                var myAdapter = MyAdapter(data){index -> deleteItem(index)}
                layoutManager = manager
                adapter = myAdapter
            }
        }
    }

    override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): MyViewHolder {
         val v = LayoutInflater.from(parent.context).inflate(R.layout.list_item, parent, false)
        return MyViewHolder(v)
    }

    override fun getItemCount(): Int {
        return listData.size
    }

    override fun onBindViewHolder(holder: MyViewHolder, position: Int) {
        if(listData[position].horizontal){
                listData[position].data?.let { holder.bindRecyclerView(it)}
        }else {
            holder.bind(listData[position], position)
        }
    }

    fun deleteItem(index: Int){
+       onClickDelete(index)
    }

+   fun setItems(items: List<Property>){
+       listData = items as MutableList<Property>
+       notifyDataSetChanged()
+   }

}

• The onClickDelete is a callback method. This method will be called once the user will click on the delete button.
• In the MainActivity, we will show one Alert in onClickDelete.
• If the user clicks on the Delete button of the Alert, we will remove that item from the list and update the list in the adapter with the setItems method.

MainActivity.kt file change:

The MainActivity file is changed as below:

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.os.Handler
import android.os.Looper
import android.view.View
import android.widget.Toast
import androidx.appcompat.app.AlertDialog
import androidx.recyclerview.widget.LinearLayoutManager
import androidx.recyclerview.widget.RecyclerView
import androidx.swiperefreshlayout.widget.SwipeRefreshLayout
import com.example.myapplication.models.Property
import com.example.myapplication.network.Api
import com.facebook.shimmer.ShimmerFrameLayout
import retrofit2.Call
import retrofit2.Callback
import retrofit2.Response

class MainActivity : AppCompatActivity() {
    lateinit var data: MutableList<Property>

    private lateinit var recyclerView: RecyclerView
    private lateinit var manager: RecyclerView.LayoutManager
    private lateinit var myAdapter: MyAdapter
    private lateinit var swipeRefresh: SwipeRefreshLayout
    private lateinit var shrimmerView: ShimmerFrameLayout

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        manager = LinearLayoutManager(this)
        swipeRefresh = findViewById(R.id.swipeRefresh)
        shrimmerView = findViewById(R.id.shimmer_view_container)

        swipeRefresh.setOnRefreshListener {
            getAllData()
        }

        getAllData()

    }

    fun getAllData(){
        Api.retrofitService.getAllData().enqueue(object: Callback<List<Property>>{
            override fun onResponse(
                call: Call<List<Property>>,
                response: Response<List<Property>>
            ) {
                shrimmerView.stopShimmer()
                shrimmerView.visibility = View.GONE
                if(swipeRefresh.isRefreshing){
                    swipeRefresh.isRefreshing = false
                }
                if(response.isSuccessful){
                    recyclerView = findViewById<RecyclerView>(R.id.recycler_view).apply{
                        data = response.body() as MutableList<Property>
+                       myAdapter = MyAdapter(data){index -> deleteItem(index)}
                        layoutManager = manager
                        adapter = myAdapter
                    }
                }
            }

            override fun onFailure(call: Call<List<Property>>, t: Throwable) {
                t.printStackTrace()
            }
        })
    }

+   fun deleteItem(index: Int){
+       val alertBuilder = AlertDialog.Builder(this)
+       alertBuilder.setTitle("Delete")
+       alertBuilder.setMessage("Do you want to delete this item ?")
+       alertBuilder.setPositiveButton("Delete"){_,_ ->
+           if(::data.isInitialized && ::myAdapter.isInitialized){
+               data.removeAt(index)
+               myAdapter.setItems(data)
+               Toast.makeText(this, "Item deleted", Toast.LENGTH_SHORT).show()
+           }
+       }
+
+       alertBuilder.setNegativeButton("No"){_,_ ->
+
+       }
+
+       alertBuilder.setNeutralButton("Cancel"){_,_ ->
+
+       }
+      alertBuilder.show()
+   }
+}

• On initializing the adapter, we are passing the callback method MyAdapter(data){index -> deleteItem(index)}.
• It will call the deleteItem method if the user clicks on the delete button.
• We are creating one AlertDialog by using the AlertDialog.Builder method. The setTitle and setMessage methods are used to set the title and message for the alert. The setPositiveButton, setNegativeButton and setNeutralButton methods are used to add three buttons to the dialog. We can add the code to execute in the callback method. On clicking these buttons, it will execute the code.
• The show method is used to show the AlertDialog.
• On clicking the delete button, it removes the item at the given index from the data and assigns the new items to the adapter by using the setItems method.

Output:

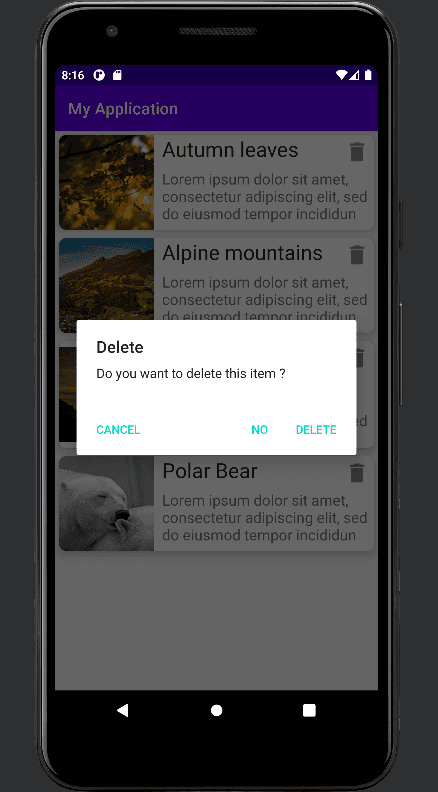

If you run the program, it will show you the list. You can click on the delete button of any item and it will show you one AlertDialog as shown below:

Download the code:

The code is available on Github. Please use the tut-alert tag to get the code used in this tutorial.

git clone https://github.com/AppDevAssist/recyclerview-kotlin && git checkout tags/tut-alert
