Horizontal RecyclerView in vertical RecyclerView in Android

YouTube video:

I published a video on YouTube. You can watch it here:

Please do subscribe to my channel if you love this video.

Node.js Application:

Download the Node.js project from this link. You can run npm install && npm run start or yarn && yarn start to start the server on the 3000 port.

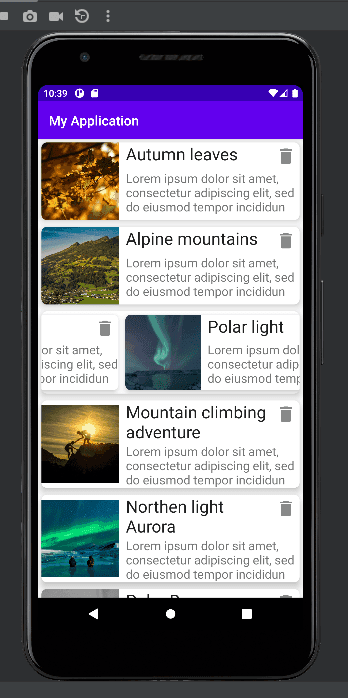

Open any browser and go to localhost:3000/horizontal to get the response array used in this example.

Response data:

You can download the Node.js project from here. If we make a get request on /horizontal, it will return the following data:

[
    {
        "id" : 1,
        "title" : "Autumn leaves",
        "description": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididun",
        "image" : "https://cdn.pixabay.com/photo/2020/10/03/17/40/autumn-5624139_1280.jpg"
    },
    {
        "id" : 2,
        "title" : "Alpine mountains",
        "description": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididun",
        "image" : "https://cdn.pixabay.com/photo/2020/10/03/10/56/mountains-5623208_1280.jpg"
    },
    {
        "id": 0,
        "horizontal": true,
        "data" : [
            {
                "id" : 1,
                "title" : "Polar light",
                "description": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididun",
                "image" : "https://cdn.pixabay.com/photo/2020/09/24/17/59/aurora-5599375_1280.jpg"
            },
            {
                "id" : 2,
                "title" : "Horse",
                "description": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididun",
                "image" : "https://cdn.pixabay.com/photo/2020/11/24/12/34/horse-5772416_1280.jpg"
            },
            {
                "id" : 3,
                "title" : "Berries",
                "description": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididun",
                "image" : "https://cdn.pixabay.com/photo/2020/11/24/12/23/flowering-dogwood-5772385_1280.jpg"
            },
            {
                "id" : 4,
                "title" : "Sunset",
                "description": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididun",
                "image" : "https://cdn.pixabay.com/photo/2020/04/04/03/10/landscape-5000655_1280.jpg"
            },
            {
                "id" : 5,
                "title" : "Flowers",
                "description": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididun",
                "image" : "https://cdn.pixabay.com/photo/2020/06/29/08/06/helichrysum-italicum-5351797_1280.jpg"
            }
        ]
    },
    {
        "id" : 3,
        "title" : "Mountain climbing adventure",
        "description": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididun",
        "image" : "https://cdn.pixabay.com/photo/2016/11/08/05/20/adventure-1807524_1280.jpg"
    },
    {
        "id" : 4,
        "title" : "Northen light Aurora",
        "description": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididun",
        "image" : "https://cdn.pixabay.com/photo/2016/02/07/19/48/aurora-1185464_1280.jpg"
    },
    {
        "id" : 5,
        "title" : "Polar Bear",
        "description": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididun",
        "image" : "https://cdn.pixabay.com/photo/2013/10/16/14/04/polar-bear-196318_1280.jpg"
    }
]

For the third element, we have a new property horizontal which is true and it returns another array of items with the data key.

Project structure:

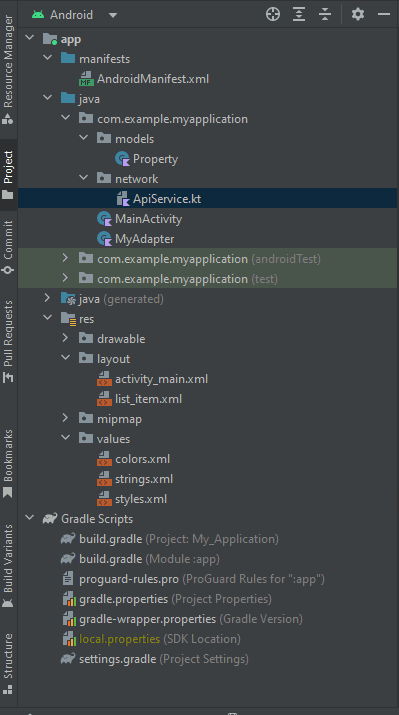

The files of the project looks as below:

Changes to the list item layout file:

In the list item layout file, we will add one RecyclerView component. This component will show the horizontal RecyclerView.

<?xml version="1.0" encoding="utf-8"?>
<androidx.cardview.widget.CardView android:layout_height="wrap_content"
    android:layout_width="match_parent"
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    app:cardCornerRadius="8dp"
    app:cardElevation="8dp"
    android:layout_margin="5dp">
+   <androidx.recyclerview.widget.RecyclerView
+       android:id="@+id/recyclerView"
+       android:visibility="gone"
+       android:layout_width="match_parent"
+       android:layout_height="wrap_content"/>
    <androidx.constraintlayout.widget.ConstraintLayout
+       android:id="@+id/constraintLayout"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
        <ImageView
            android:id="@+id/imageView"
            android:layout_width="0dp"
            android:layout_height="0dp"
            app:layout_constraintWidth_percent=".3"
            app:layout_constraintDimensionRatio="1:1"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintLeft_toLeftOf="parent"
            android:src="@drawable/ic_launcher_background"
            />

        <TextView
            android:id="@+id/tvTitle"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            app:layout_constraintStart_toEndOf="@+id/imageView"
            app:layout_constraintEnd_toStartOf="@id/button"
            app:layout_constraintTop_toTopOf="parent"
            android:textSize="25sp"
            android:fontFamily="sans-serif"
            android:textColor="#212121"
            android:layout_marginStart="10dp"
            android:text="This is a very long title and here it is"
            android:layout_marginLeft="10dp" />
        <Button
            android:id="@+id/button"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_marginTop="5dp"
            android:layout_marginEnd="5dp"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintTop_toTopOf="parent"
            android:background="@drawable/ic_baseline_delete_24"
            app:layout_constraintWidth_percent=".08"
            app:layout_constraintDimensionRatio="1:1"
            android:layout_marginRight="5dp" />
        <TextView
            android:id="@+id/tvDescription"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            app:layout_constraintStart_toStartOf="@+id/tvTitle"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintTop_toBottomOf="@+id/tvTitle"
            app:layout_constraintBottom_toBottomOf="parent"
            android:textSize="18sp"
            android:fontFamily="sans-serif"
            android:text="This is a very long title and here it is"
             />
    </androidx.constraintlayout.widget.ConstraintLayout>
</androidx.cardview.widget.CardView>

Change the APIService class:

We need to change the endpoint in the APIService class. Following are the changes we need add to the APIService.kt class file:

import com.example.myapplication.models.Property
import com.squareup.moshi.Moshi
import com.squareup.moshi.kotlin.reflect.KotlinJsonAdapterFactory
import retrofit2.Call
import retrofit2.Retrofit
import retrofit2.converter.moshi.MoshiConverterFactory
import retrofit2.http.GET

private const val BASE_URL = "http://10.0.2.2:3000"

private val moshi = Moshi.Builder().add(KotlinJsonAdapterFactory()).build()
private val retrofit = Retrofit.Builder().addConverterFactory(MoshiConverterFactory.create(moshi)).baseUrl(BASE_URL).build()

interface ApiService{

+   @GET("horizontal")
    fun getAllData(): Call<List<Property>>

}

object Api {
    val retrofitService: ApiService by lazy{retrofit.create(ApiService::class.java)}
}

The getAllData method returns a list of Property objects. We also need to change the Property object class.

Changes to the model Property class:

We need to change the model class as below:

package com.example.myapplication.models

data class Property(val id: Int, val title: String = "", val description: String = "", val image: String = "", val horizontal: Boolean = false, val data: List<Property>? = null)

We added two new properties horizontal and data.

Changes to the adapter class:

We need to change the MyAdapter.kt class as below:

package com.example.myapplication

import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import android.widget.Button
import android.widget.ImageView
import android.widget.TextView
import androidx.constraintlayout.widget.ConstraintLayout
import androidx.recyclerview.widget.LinearLayoutManager
import androidx.recyclerview.widget.RecyclerView
import com.bumptech.glide.Glide
import com.example.myapplication.models.Property

class MyAdapter(data: List<Property>) : RecyclerView.Adapter<MyAdapter.MyViewHolder>()  {

    private var listData: MutableList<Property> = data as MutableList<Property>
    inner class MyViewHolder(val view: View): RecyclerView.ViewHolder(view){

        fun bind(property: Property, index: Int){
            val title = view.findViewById<TextView>(R.id.tvTitle)
            val imageView = view.findViewById<ImageView>(R.id.imageView)
            val description = view.findViewById<TextView>(R.id.tvDescription)
            val button = view.findViewById<Button>(R.id.button)
+           val constraintLayout = view.findViewById<ConstraintLayout>(R.id.constraintLayout)
+           val recyclerView = view.findViewById<RecyclerView>(R.id.recyclerView)

+           constraintLayout.visibility = View.VISIBLE
+           recyclerView.visibility = View.GONE


            title.text = property.title
            description.text = property.description

            Glide.with(view.context).load(property.image).centerCrop().into(imageView)

            button.setOnClickListener{deleteItem(index)}

        }

+       fun bindRecyclerView(data: List<Property>){
+           val recyclerView = view.findViewById<RecyclerView>(R.id.recyclerView)
+           val constraintLayout = view.findViewById<ConstraintLayout>(R.id.constraintLayout)
+
+           constraintLayout.visibility = View.GONE
+           recyclerView.visibility = View.VISIBLE
+
+           val manager : RecyclerView.LayoutManager = LinearLayoutManager(view.context, LinearLayoutManager.HORIZONTAL, true)
+           recyclerView.apply{
+               val data = data as MutableList<Property>
+               var myAdapter = MyAdapter(data)
+               layoutManager = manager
+               adapter = myAdapter
+           }
+       }
+   }

    override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): MyViewHolder {
         val v = LayoutInflater.from(parent.context).inflate(R.layout.list_item, parent, false)
        return MyViewHolder(v)
    }

    override fun getItemCount(): Int {
        return listData.size
    }

    override fun onBindViewHolder(holder: MyViewHolder, position: Int) {
+       if(listData[position].horizontal){
+               listData[position].data?.let { holder.bindRecyclerView(it)}
+       }else {
+           holder.bind(listData[position], position)
+       }
    }

    fun deleteItem(index: Int){
        listData.removeAt(index)
        notifyDataSetChanged()
    }
}

• By default, the constraint layout is hidden and the RecyclerView is visible.
• Inside onBindViewHolder, we are checking the horizontal property of the data. Based on its value, we are binding different data.
• The bindRecyclerView method is used to bind the horizontal RecyclerView. It changes the visibility of the RecyclerView and the ConstraintLayout and shows a horizontal RecyclerView.

Changes to the MainActivity:

We don't need any change to the MainActivity.kt file:

package com.example.myapplication

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import androidx.recyclerview.widget.LinearLayoutManager
import androidx.recyclerview.widget.RecyclerView
import androidx.swiperefreshlayout.widget.SwipeRefreshLayout
import com.example.myapplication.models.Property
import com.example.myapplication.network.Api
import retrofit2.Call
import retrofit2.Callback
import retrofit2.Response

class MainActivity : AppCompatActivity() {
    lateinit var data: MutableList<Property>

    private lateinit var recyclerView: RecyclerView
    private lateinit var manager: RecyclerView.LayoutManager
    private lateinit var myAdapter: MyAdapter
    private lateinit var swipeRefresh: SwipeRefreshLayout

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        manager = LinearLayoutManager(this)
        swipeRefresh = findViewById(R.id.swipeRefresh)

        swipeRefresh.setOnRefreshListener {
            getAllData()
        }
        getAllData()
    }

    fun getAllData(){
        Api.retrofitService.getAllData().enqueue(object: Callback<List<Property>>{
            override fun onResponse(
                call: Call<List<Property>>,
                response: Response<List<Property>>
            ) {
                if(swipeRefresh.isRefreshing){
                    swipeRefresh.isRefreshing = false
                }
                if(response.isSuccessful){
                    recyclerView = findViewById<RecyclerView>(R.id.recycler_view).apply{
                        data = response.body() as MutableList<Property>
                        myAdapter = MyAdapter(data)
                        layoutManager = manager
                        adapter = myAdapter
                    }
                }
            }

            override fun onFailure(call: Call<List<Property>>, t: Throwable) {
                t.printStackTrace()
            }
        })
    }
}

Similarly, the activity_main.xml is not changed:

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">
    <androidx.swiperefreshlayout.widget.SwipeRefreshLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:id="@+id/swipeRefresh">
    <androidx.recyclerview.widget.RecyclerView
        android:id="@+id/recycler_view"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_marginStart="1dp"
        android:layout_marginLeft="1dp"
        android:layout_marginTop="25dp"
        android:layout_marginEnd="1dp"
        android:layout_marginRight="1dp"
        android:layout_marginBottom="1dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />
    </androidx.swiperefreshlayout.widget.SwipeRefreshLayout>
</androidx.constraintlayout.widget.ConstraintLayout>

The build.gradle file changes are:

apply plugin: 'com.android.application'
apply plugin: 'kotlin-android'
apply plugin: 'kotlin-android-extensions'

android {
    compileSdkVersion 30
    buildToolsVersion "30.0.2"

    defaultConfig {
        applicationId "com.example.myapplication"
        minSdkVersion 16
        targetSdkVersion 30
        versionCode 1
        versionName "1.0"

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
    }

    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
        }
    }

    compileOptions {
        sourceCompatibility JavaVersion.VERSION_1_8
        targetCompatibility JavaVersion.VERSION_1_8
    }

    kotlinOptions {
        jvmTarget = "1.8"
    }
}

dependencies {
    implementation fileTree(dir: "libs", include: ["*.jar"])
    implementation "org.jetbrains.kotlin:kotlin-stdlib:$kotlin_version"
    implementation 'androidx.core:core-ktx:1.1.0'
    implementation 'androidx.appcompat:appcompat:1.1.0'
    implementation 'androidx.constraintlayout:constraintlayout:1.1.3'
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'androidx.test.ext:junit:1.1.1'
    implementation "androidx.recyclerview:recyclerview:1.1.0"
    implementation "androidx.cardview:cardview:1.0.0"
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.2.0'
    implementation 'com.squareup.retrofit2:retrofit:2.9.0'
    implementation "com.squareup.moshi:moshi-kotlin:1.11.0"
    implementation 'com.squareup.retrofit2:converter-moshi:2.9.0'
    implementation 'com.github.bumptech.glide:glide:4.11.0'
    implementation "androidx.swiperefreshlayout:swiperefreshlayout:1.1.0"
}

Output:

If you run the program, it will give output as below:

Github:

The code is available on Github. Please use the tut-horizontal-in-vertical tag to get the code explained on this tutorial.

git clone https://github.com/AppDevAssist/recyclerview-kotlin && git checkout tags/tut-horizontal-in-vertical
